Files for laser cutting

Chess Box 270x270x50mm with chessboard

Chess Box 270x270x50mm with chessboard

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out
Instant download and send a link to download the project also to your e-mail address. (Shipping Policy)

All digital files are licensed. By purchasing the design, you agree to the terms of our commercial and personal license.

  • Google Pay
  • Apple Pay
  • Visa
  • Mastercard
  • American Express
  • PayPal

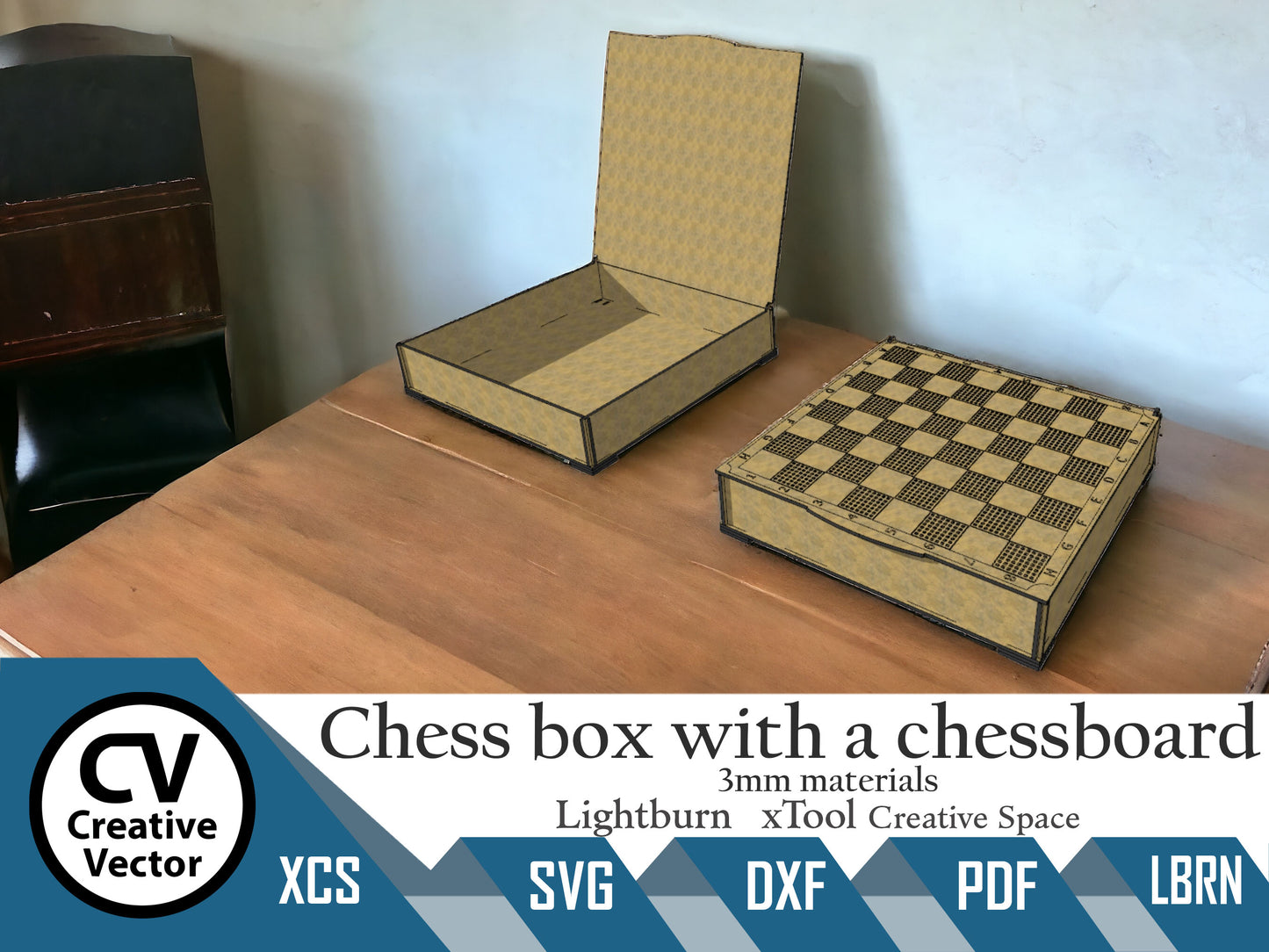

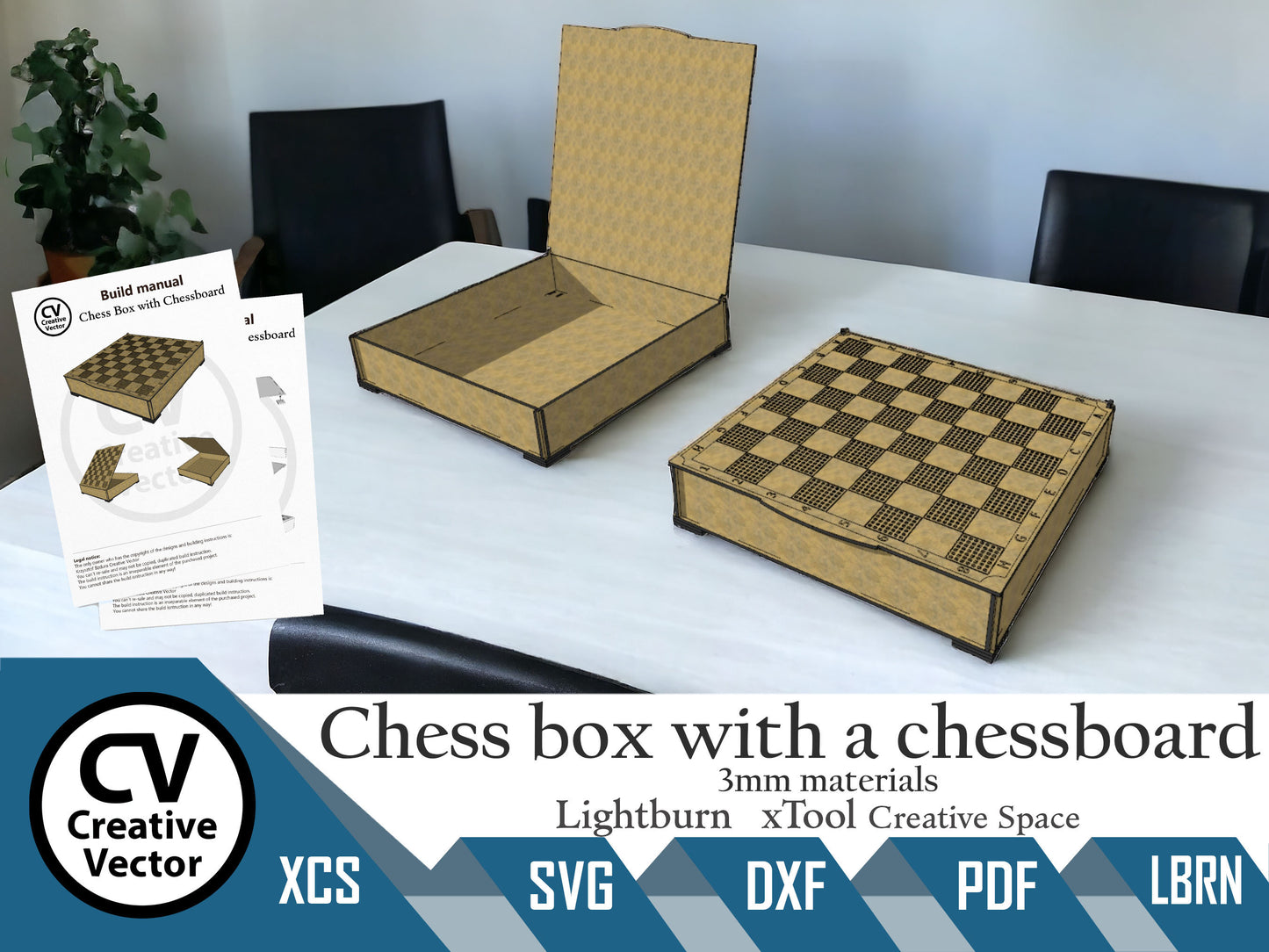

Shape pattern Chess Box with Chessboard. Files for laser cutting.

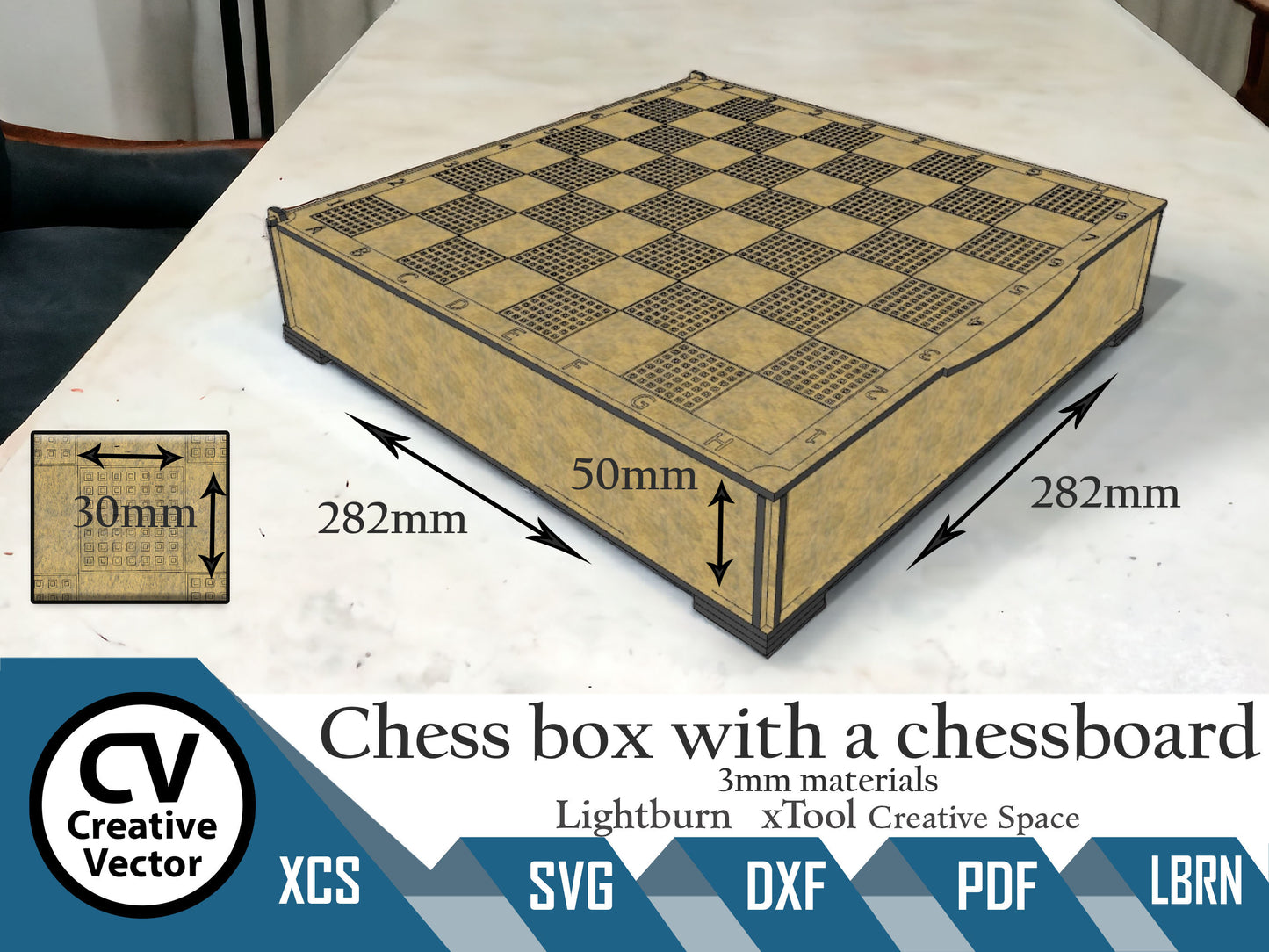

Inside dimensions: 270x270x50mm
Dimensions of the chess field: 30x30mm

Materials thickness with digital files: 3mm (0,12 inch)

Files prepared for the laser working area:

Assembly pawns without glue!

Vector colors:
Red - cut
Blue - Engraved line

You will download 1 ZIP files containing the following:

Files for 3mm (0.12 inch) thickness:
> LBRN (Lightburn)
> DXF ( AutoCAD 2008-2013)
> SVG (Scalable Vector Graphics)
> AI (CS5)

Commercial use limit: 20 cut out items for 1 purched project

Instant download

Instant download after payment in accordance with our Shipping Policy

Materials thickness

Materials thickness with digital files: 3mm (0,12 inch) unless it says otherwise in the project description.

Before cutting out the design

All patterns are designed for a specific material thickness indicated in the project description. Therefore, measure the thickness of your material and add a parameter in the cutting program to correct the laser beam by the difference in thickness. Make a test on a small element.

Refund policy

If the purchased design is not downloaded 2 calendar days in accordance with our Refund Policy

Commercial License

You can sell ready-made products cut from the design with a commercial license. The limit, if different, is written in the project description.

Software requirements

These files are vectors and compatible with software (laser cutter, cnc router, cnc plasma, plotter) that supports SVG, PDF, DXF, Ai or LBRN (Lightburn) files.
Please make sure your PC is compatible (if you have others) before purchasing these files
